Sysolution M69B supports -40℃ to 75℃ in high temperature, and supports network backup with gigabit dual network ports. Support access to cloud platform publishing, easy to achieve remote cluster control of display screens；Hardware and software design fully consider user deployment, operation, and maintenance scenarios, making deployment easier, operation more stable, and maintenance more efficient. With safe and stable functional design, save space for users, reduce wiring, can be used for advertising machine, transparent screen, mirror screen, shaped screen, door screen, shopping mall screen. Subway screen, special stage screen and other scenes with load.
M69B series adopts industrial-grade quad-core processor, integrates four Cortex-A35, dual-core Mali-G31 GPU, four-core master frequency 1.5GHz, can withstand 85℃ high temperature stable operation, memory support 1GB+8GB (compatible with 2GB+16GB) LPDDR3. The chip can support GSM, WCDMA, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE and other systems, is a highly integrated product.
Function Characteristics
Product Appearance
M69B with box
M69 Naked card
Product Parameter
| Features | Description | |
| Type | M69(naked card)/M69B (player box), optional 4G module, M69B-CH China, M69B-g global access to foreign countries | |
| Pixel | M69B:Dual Ethernet ports,1.3 million pixels, maximum width 1920,maximum height 1920,Support discount maximum width 20222,maximum height 1920 | |
| Communication mode | Network port,WiFi,USB,Optional 4G module | |
| CPU | Cortex-A35 4 Core main frequency 1.5GHz | |
| GPU | Mali-G31MP2 OpenGL ES3.2, Vulkan 1.0, OpenCL 2.0 Dvalin-2EE | |
| System memory | 8GB Emmc+1GB LPDDR3 | |
| Operating system | Android 9.0 | |
| WiFi | IEEE 802.11b/g/n 2.4G | |
| GPS | GNSS GPS/Beidou/Glonass | |
| Other interface support |
|
|
| Configuration software | LedOK Express | |
| Support frequency band | ||
| Type | 3G/4G(optional) | Certificate |
| M69B-G |
-Global FDD-LTE:B1/2/3/4/5/7/8/12/13/ 18/19/20/25/26/28 TDD-LTE:B38/39/40/41 WCDMA:B1/2/4/5/8/6/19 GSM:4 frequencies |
Operator certification:Deutsche Telekom/ Verizon/ AT&T/ Sprint/U.S. Cellular/ Telus Mandatory / conformance certification:GCF/ CE/ FCC/ PTCRB/ IC/ Anatel/IFETEL/ SRRC/ NAL/ CCC/ KC/ NCC/ JATE/ TELEC/ RCM/ NBTC/ IMDA/ICASA others:WHQL |
| M69B-NA |
-North America FDD-LTE:B2/4/5/7/12/13/17 WCDMA: B2/4/5 |
Operator certification:AT&T/ T-Mobile/Rogers/ TelusVerizon/AT&T (FirstNet)/T-Mobile/U.S. Cellular/Rogers/ Telus Mandatory / conformance certification:FCC/ IC/ PTCRB Others :WHQL
|
| M69B-EU |
-Eurasia(EMEA/Korea/Thailand/India and other Asian countries) FDD-LTE:B1/3/5/7/8/20 TDD-LTE:B38/40/41 WCDMA:B1/5/8 GSM:B3/5/8 |
Operator certification:Vodafone/Deutsche Telekom/SKT/ Telefónica Mandatory / conformance certification:GCF/ CE/ KC/ NCC/RCM/ FAC/ NBTC/ICASA Others :WHQL
|
| M69B-LA |
-Latin America(LA/AU/Newsland) FDD-LTE:B1/3/5/7/8/28 TDD-LTE:B40 WCDMA:B1/2/5/8 GSM:B2/3/5/8 |
Compulsory Certification:GCF/ FCC/ Anatel/ NCC/RCM Others:WHQL |
| M69B-J |
-Japan FDD-LTE:B1/3/8/18/19/26 TDD-LTE:B41 WCDMA:B1/6/8/19 |
Operator certification:NTT DOCOMO/SoftBank/ KDDI Compulsory Certification:JATE/ TELEC Others :WHQL |
Interface Parameters/Define

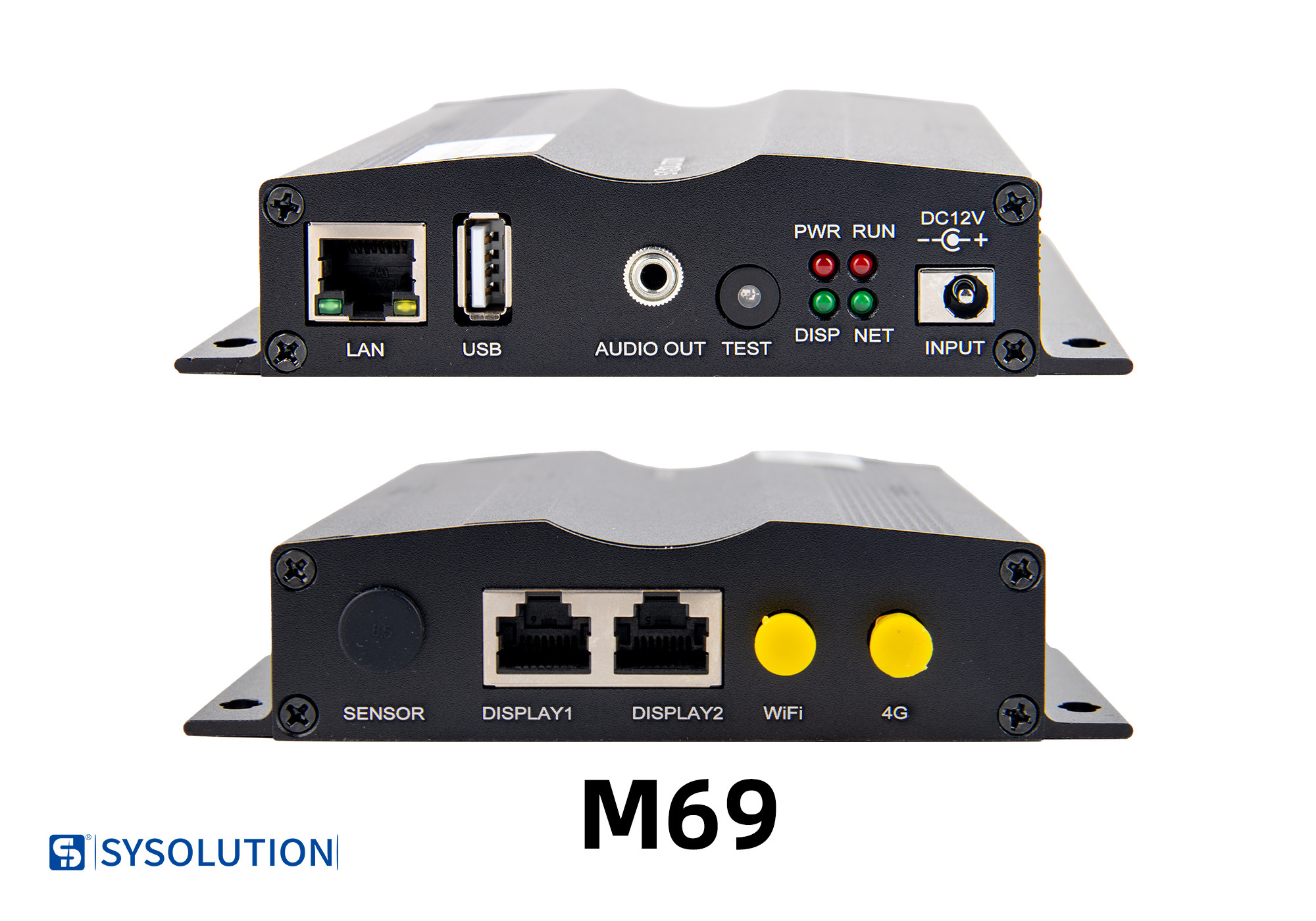

M69B Product Interface Label (with box)
Front Reverse
Working Condition
| Working parameters | |
| Working voltage (V) | 12V |
| Working current (A) | 0.9A Max:3A |
| Maximum working power consumption(W) | 10 |
| working temperature (°C) | －40°C～＋75°C |
| Storage temperature (°C) | -40℃ ~75℃,Recommend 5℃ ~35℃ |
| Humidity of working environment (%) | 10% ~ 90%,No condensation |
Important Notes:
Dimensional Drawing
Installation dimensions of control box M69B
Installation dimensions of bare card M69
Unit: mm
Accessories
| Standard fittings | Quantity |
| WiFi antenna | 1 |
| 4G antenna(4G module has been selected) | 1 |
| 12V power supply adapter | 1 |
Note:
Factory soldered IoT chip. Using the IoT chip provided by Sysolution Technology does not require any operator whitelist operation and can be used directly. Using self-supplied IoT card requires real name and adding platform related domain name, there are many instability factors.
The advantages of self-contained chip: high temperature resistance, not easy to deform, stable, not easy to fall off, long time use will not age, reasonable tariffs, simple recharge, after-sales guarantee (if you need other specifications accessories, please place an order)
| Optional accessories | Accessory function |
| control box M69B-S with plug brightness sensor RL3B, bare card M69S with 2PIN terminal brightness sensor RL2 | Test the brightness of the current environment |
| control box M69B-S with plug temperature and humidity integrated sensor RTH2B, bare card M69S with 4PIN terminal brightness sensor RTH2 | Used to sense the humidity and temperature of the current environment |
| Optional multi-function card RS5 integrated synchronization module, 5-way voltage detection, opening and closing doors and smoke interface (optional RD1 door sensor, RM1 smoke sensor) | Picture timing synchronization, power supply detection |
| 8-in-1 Environmental Sensor R68 | Temperature, humidity, illumination, PM2.5, PM10, noise, wind speed, wind direction |
| Electricity statistics RM1275 | Real-time view of daily electricity consumption |
| G11 GMous Multi-mode | GPS Positioning module |
| 33W Horn *2 RLB1 | Two remote broadcasts per screen, real-time shouts |
| Accessories that can be matched (the above selection, according to the needs of the order under the corresponding model) | |
